Set up physical Airwall Gateways
Before you begin installing your Airwall Gateway, ensure that you already have the Conductor installed and configured. After you are finished installing your Airwall Gateway, you can begin connecting devices.
Airwall Gateway 175 Hardware Installation Guide

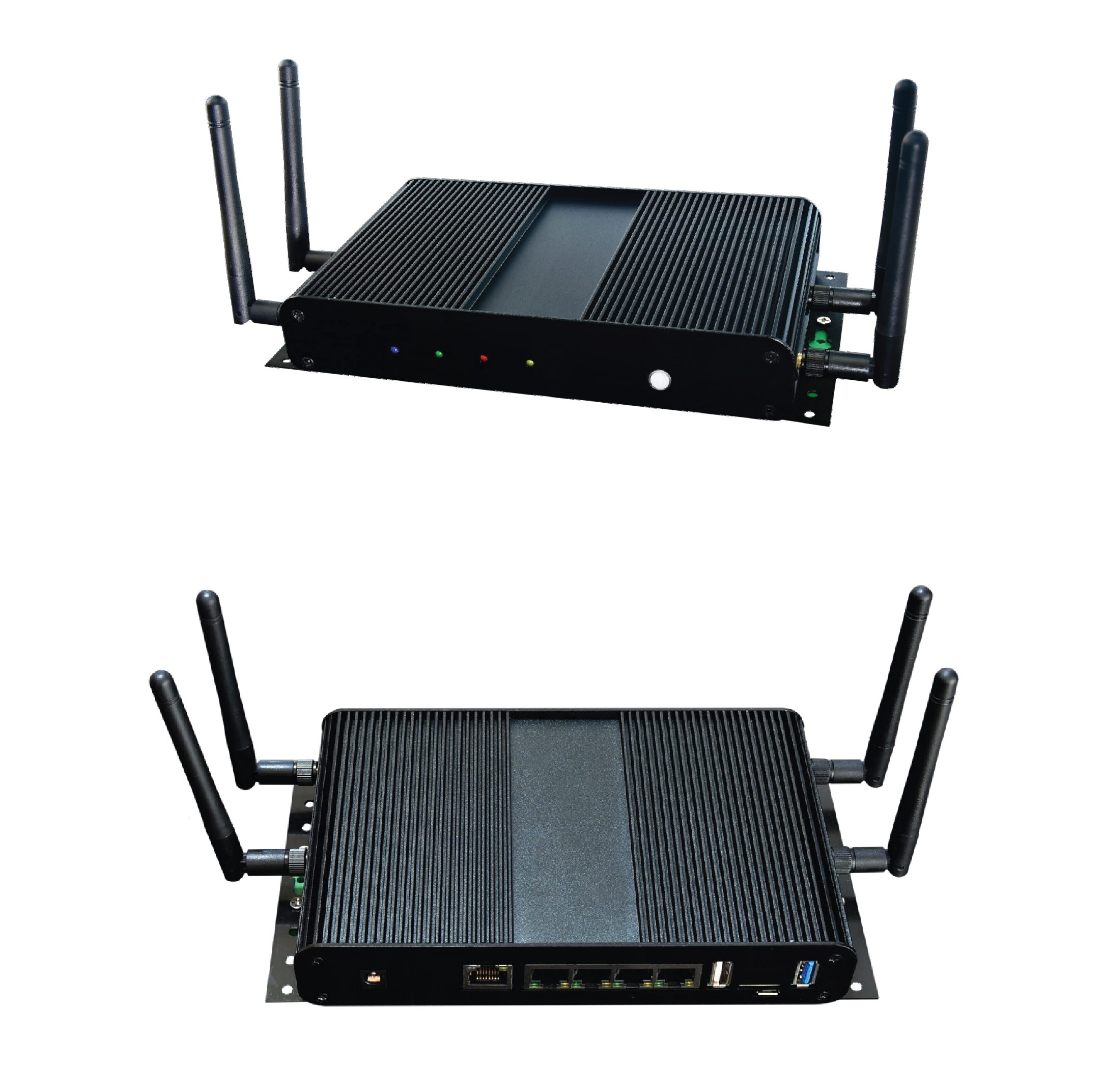

Airwall Gateway 175 panel layout

Airwall Gateway 175 panel layout


1	Power button
2	Blue LED
3	Green LED
4	Red LED
5	Yellow LED
6	WiFi antenna (currently not supported)
7	SIM for cellular (currently not supported)
8	4 x RJ45 ports
9	1 x RJ45 console port
10	Power supply
